New 1.3m Bay Ladder Access Gate Kit

Name: New 1.3m Bay Ladder Access Gate Kit
Brand: Scaffolding Supplies Limited
SKU: 3625
Price: 82.80 GBP
Availability: InStock

Product code: 113206

Be the first to review this product

2 x New 0.6m Cuplok Ledger

1 x New Access Safety Gate

1 x New Cuplok Swan Neck Standard

In Stock

£82.80 inc. VAT £69.00 exc. VAT

Qty:

Price Match Promise

We will match any price
on the same product.

click for more info

Next Day Delivery

Order before 2pm and select "Next working day". Applies Monday-Friday. Subject to stock and location.

Ask the Experts

No matter how small your question, expert help is available via email or telephone, Monday-Friday.

click to contact us

40+ Years Experience

With over 35 years experience in the scaffolding world we would like to think we have the answer to most questions

Free Help & Advice

Our friendly helpfull staff are ready to answer your call

Quality Products

All materials supplied conform to the relevant UK/EU standards, details on request.

Not what you are looking for?
Click here to view all New Cuplok

Description

Delivery & Returns

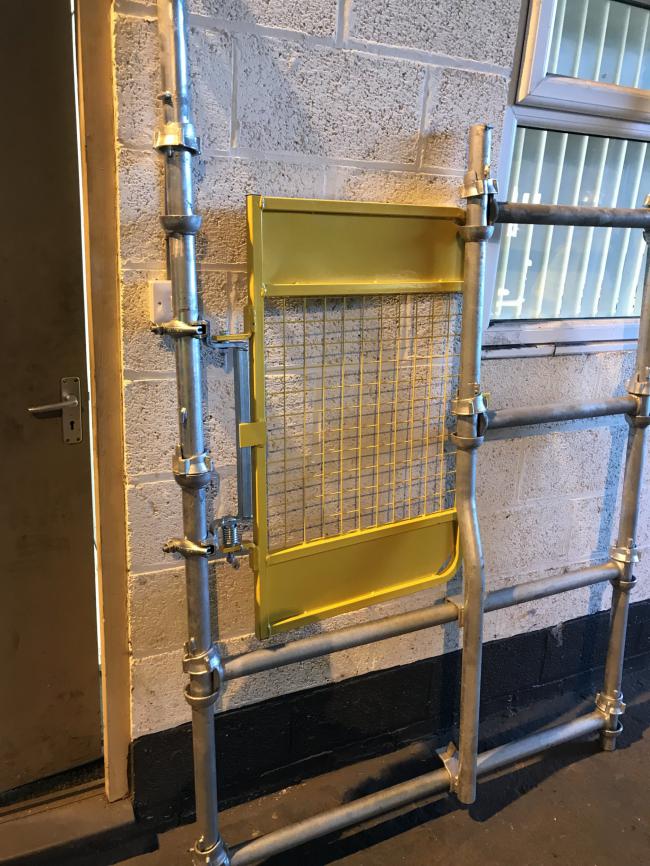

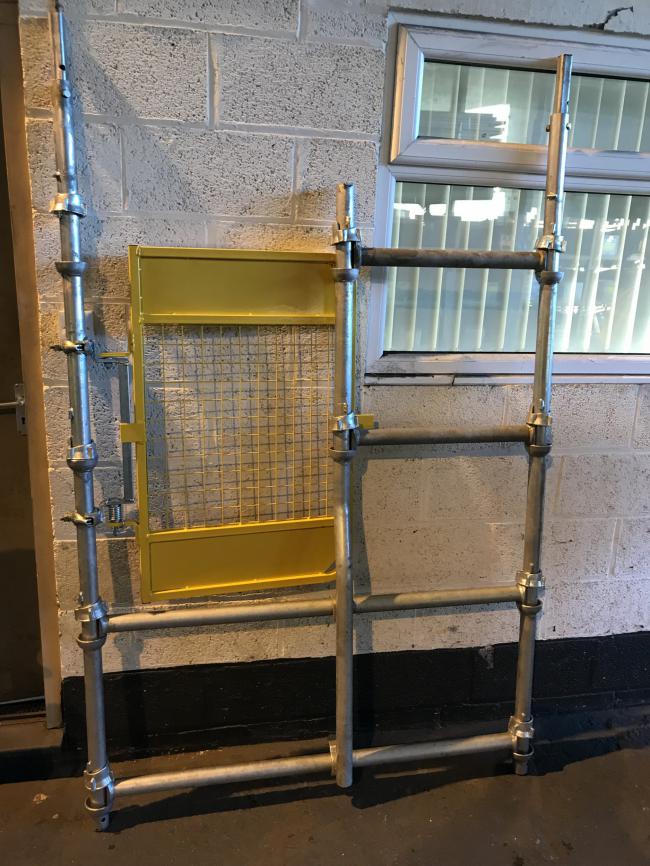

New Ladder Access Kit

Used where ladder access c/w safety gate is required in a 1.3m Cuplok bay.

For use with Intermediate Transoms/Boards

The standard 2 nos 1.3m ledger handrails are replaced with 2 nos 0.6m ledgers, one of the 1.3m ledgers being used to locate the swan neck standard on the lugs on the lift below the deck height.

Kit comprises:

2 nos 0.6m Ledgers

1 nos Swan Neck Standard

1 nos Access Safety Gate

The existing 1.3m ledgers are reused, the toe board will require cutting and refitting (not shown in photo)

The above only applies to Cuplok Scaffold where Intermediate Transoms are being used.

For use with Omega Transoms/Battens

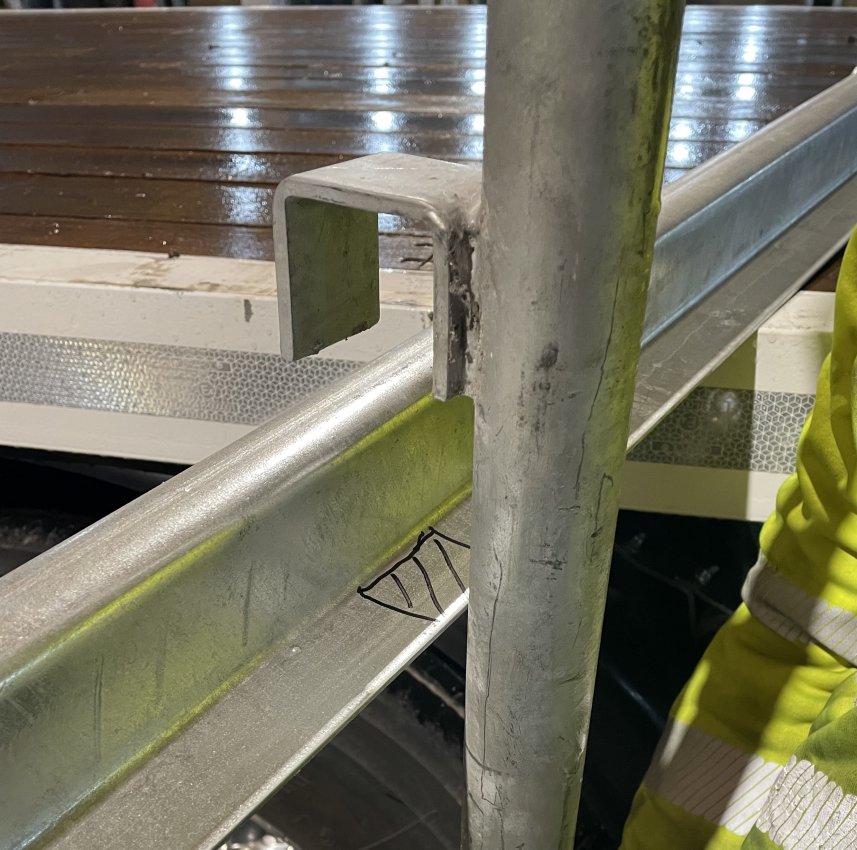

If you require access to the end of a bay and are using Omega battens you will need to cut a slot in the outside lip of the Omega Transom to accomodate the tube from the Swan Neck Standard, Please Note that if you cut the tray on the Omega Transom it should NOT be used for any other application.

In both cases you will also require a tube/bracket to secure the ladder at 90 degrees to the scaffold.
